EXPERIMENTAL FACILITIES

XRD lab


Department of Condensed Matter Physics
Faculty of Mathematics and Physics,
Charles University



Zetasizer on separate page

Rigaku Smartlab

  • theta-theta vertical goniometer
  • Cu rotating anode 9 kW
    Bragg-Brentano and parallel beam (CBO), mirror, Ge (220) monochromator
    1D  detector D/TEX U250
    2D detector Hypix 3000
    grazing incidence arm
    cradle
    Johansson Ka monochromator


Smartlab
More

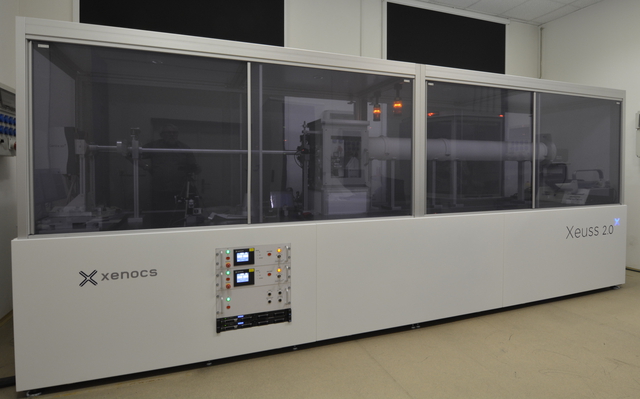

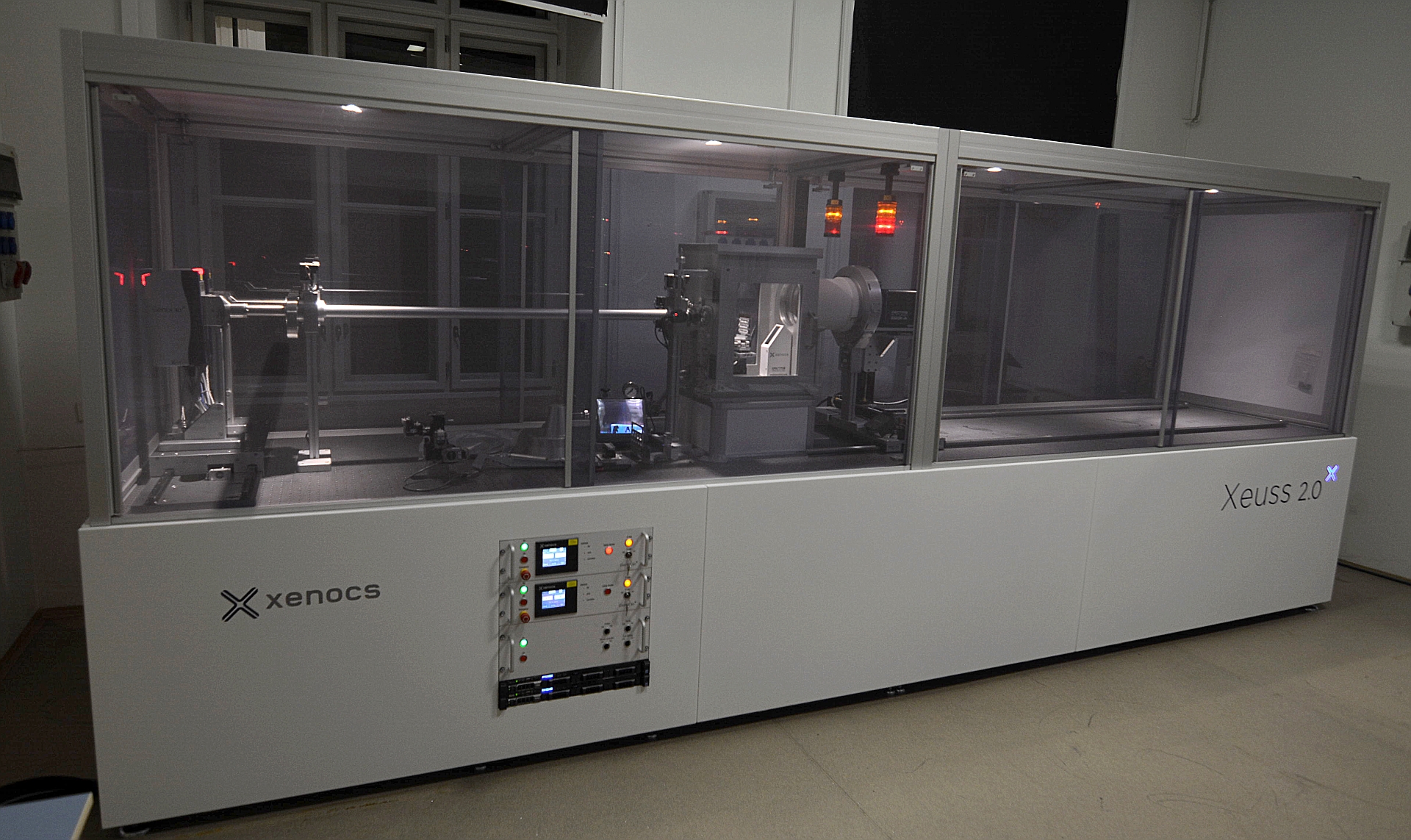

Xenocs SAXS Xeuss 2.0

  • 2 X-ray microfocus tubes, Mo, Cu 50 W
  • 5 m total length
  • Pilatus detectors (WAXS, SAXS)
    evacuated sample chamber

SAXS
More

PHILIPS X'Pert PRO MPD DIFFRACTOMETER

  • theta-theta vertical goniometer
  • Cu X-ray tube
  • automatic divergence, anti-scatter and receiving slits
  • two Goebel parabolic mirrors, parallel plate collimator
  • full PC control
  • high-temperature MRI basic with direct and radiant heating

  • fast PIXCEL detector (more)


More

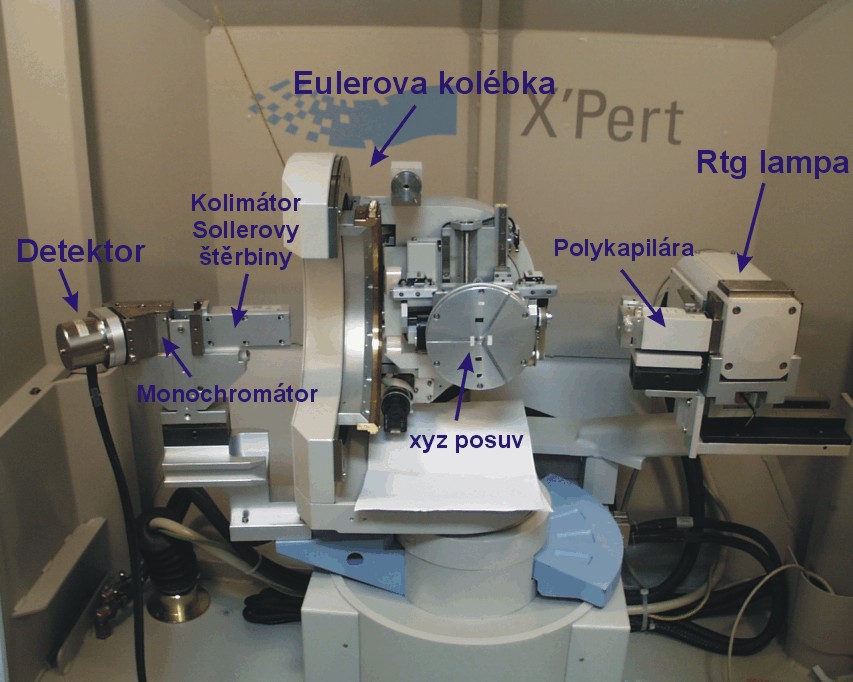

PHILIPS X'Pert PRO MRD DIFFRACTOMETER

  • theta-2theta horizontal goniometer
  • Cu X-ray tube
  • point focus optics, X-ray lens - polycapillary
  • large Eulerian cradle (for stresses and texture measurement)
  • low-resolution optics, Goebel parabolic mirror, parallel plate collimator
  • high-resolution optics, Goebel parabolic mirror, Barthels four-crystal monochromator, crystal analyzer
    hybride monochromator (mirror + channel cut)
  • full PC control
    Pixcel 3D detector


More

POWDER DIFFRACTOMETER XRD 7

  • theta-2theta vertical goniometer
  • automatic alignment
  • Cu X-ray tube
  • thin film parallel beam attachment with
    a flat diffracted beam graphite monochromator
  • curved Ka monochromator
  • software XDAL/APX


More

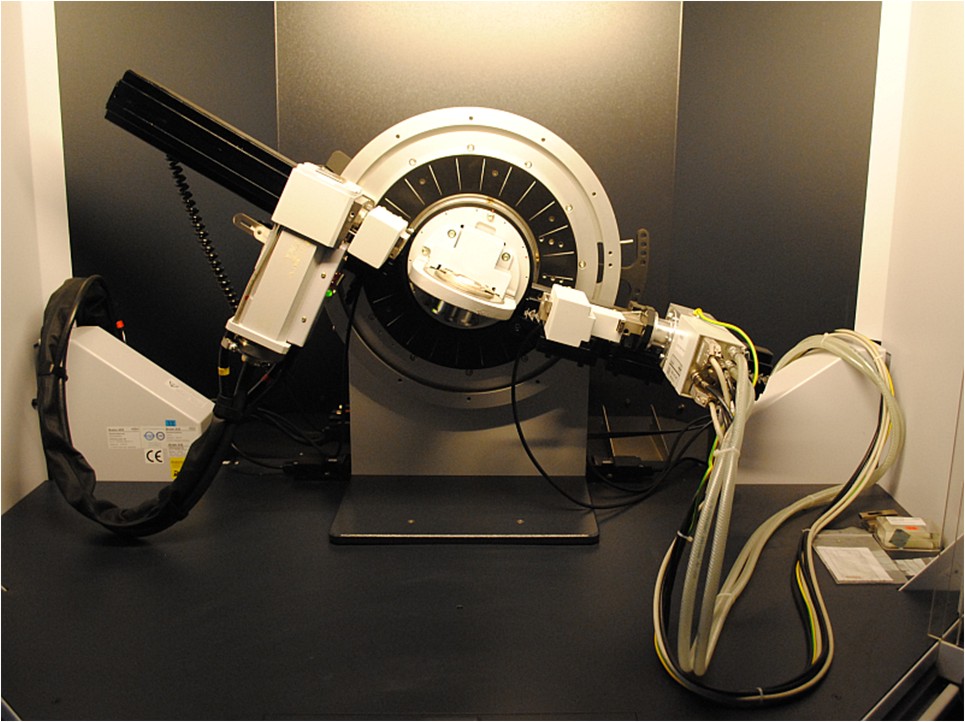

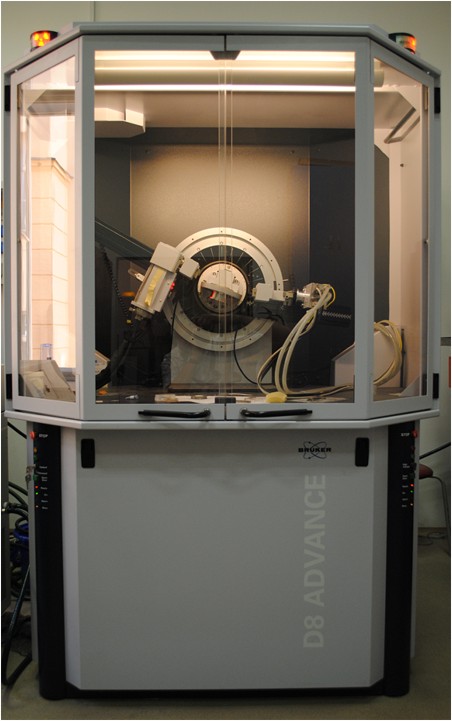

POWDER DIFFRACTOMETER Bruker D8 Advance

  • theta-2theta vertical goniometer
  • Cu X-ray tube
  • Sol X detector (suppression of fluorescent radiation)
  • software XRcommander, EVA




More

UNIVERSAL POWDER and SINGLE CRYSTAL DIFFRACTOMETER  Rigaku R-Axis Rapid

  •
  • Cu, Mo, Ag  X-ray tube
  • Cylindrical image plate detector





More

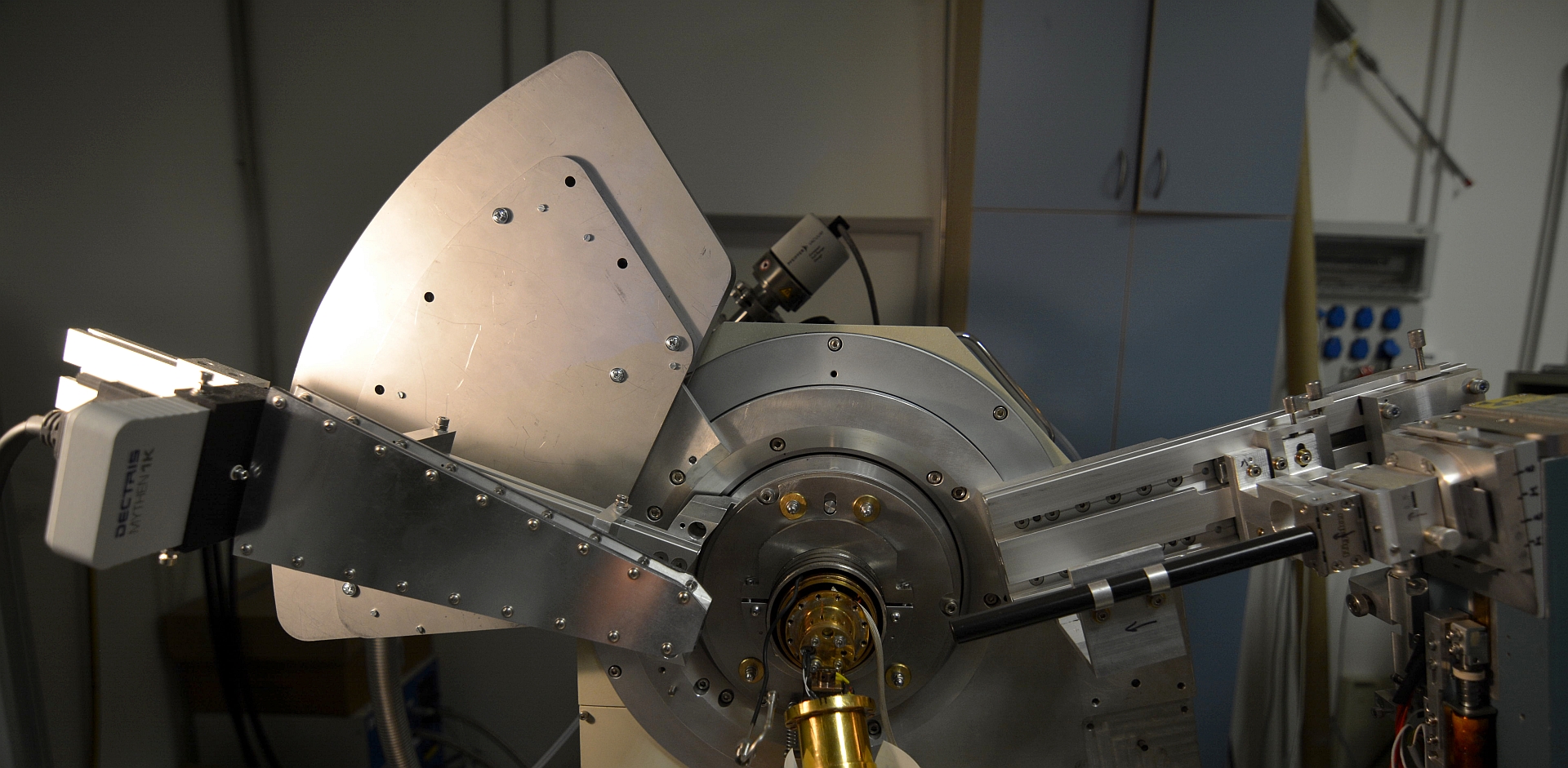

Low-temperature diffractometer built on Siemens D500 goniometer

  •
  • Cu  X-ray tube
    theta-theta vertical goniometer
    1D Mythen detector
    Bragg-Brentano and parallel beam optics
    close-cycle He cryostat down to 4 K





More

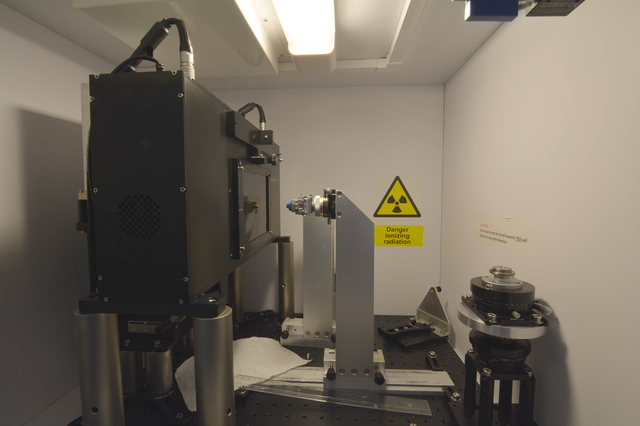

VISTA SCAN + small imaging plates

Laue goniometer - Photonic Science

  •
  • W  X-ray tube  30 W, air-cooled




More

  • Imaging plates of different size
  • Scanner Vista Scan (Duerr)

More
