- theta-theta vertical goniometer
- Cu X-ray tube
- automatic divergence, anti-scatter and receiving slits
- two Goebel parabolic mirrors, parallel plate collimator
- full PC control

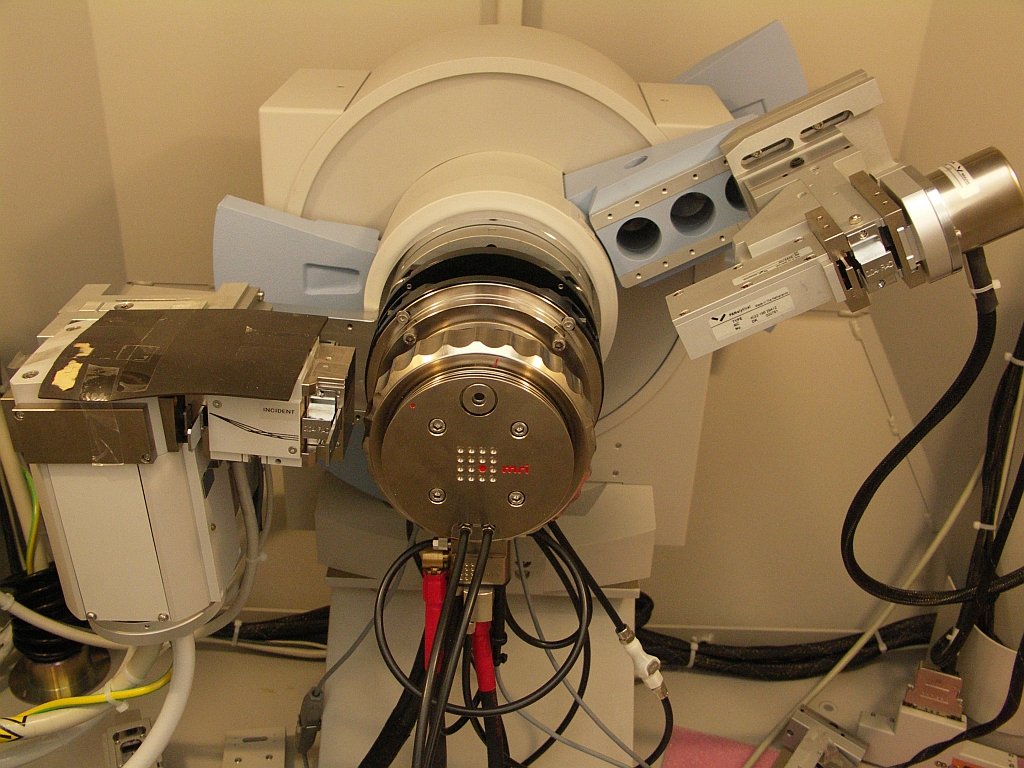

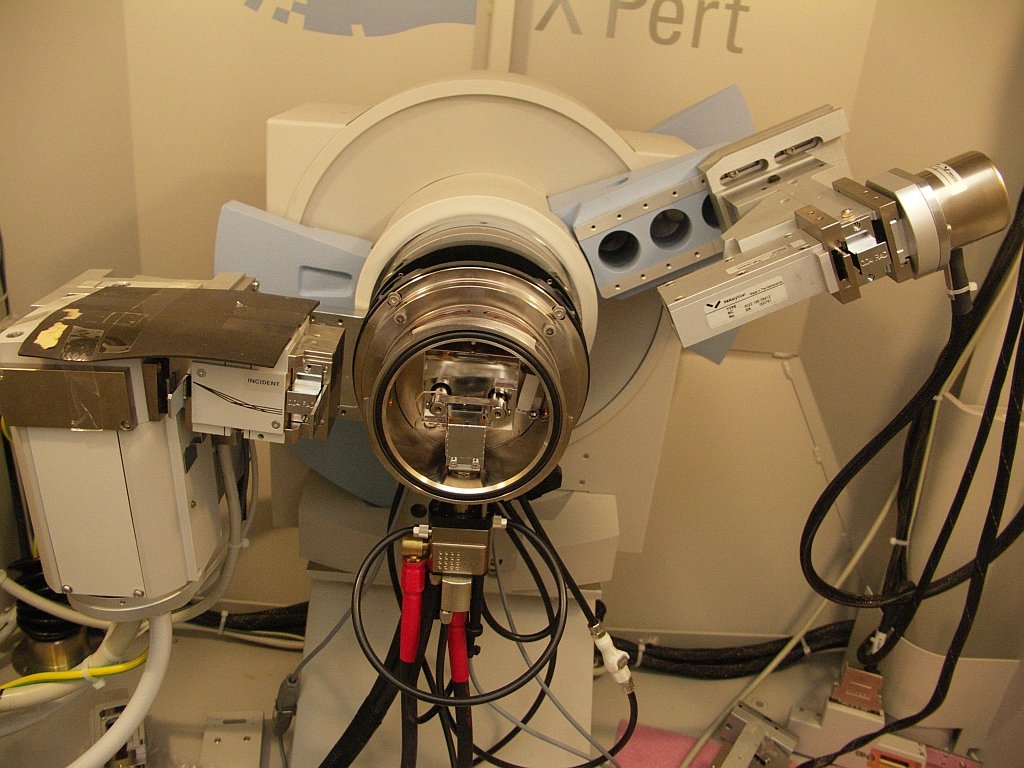

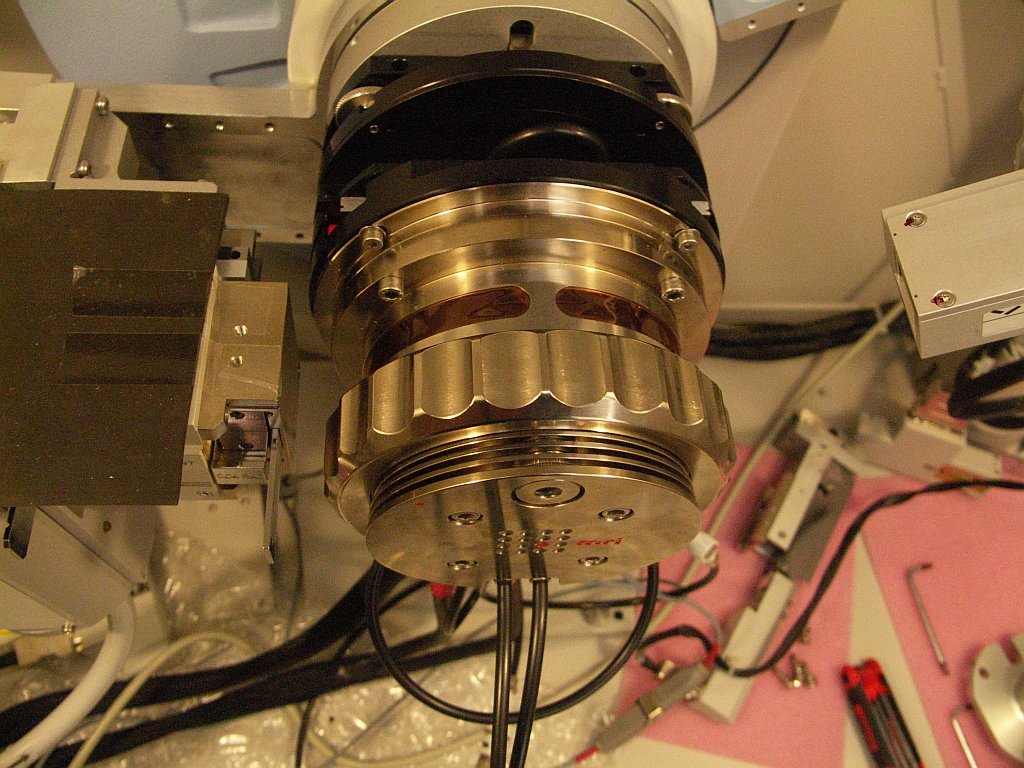

- high-temperature MRI basic with direct and radiant heating
high-resolution parallel beam setup - for thin film analysis, rough surfaces, suppression of instrumental aberrations (specimen displacement)
Drawbacks
low intensity for low angles of incidence
- theta-theta vertical goniometer
- Cu X-ray tube
- automatic divergence, anti-scatter and receiving slits

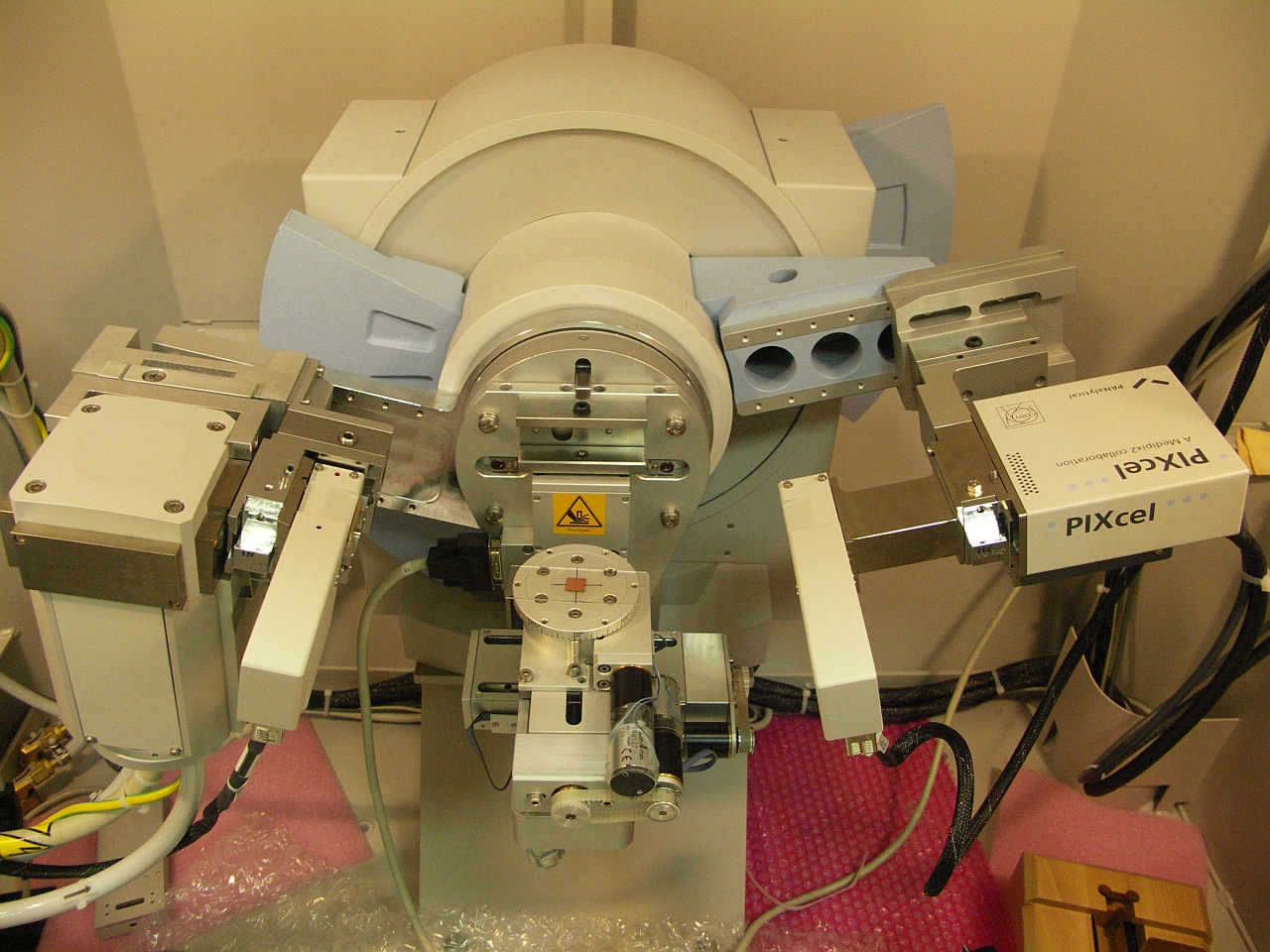

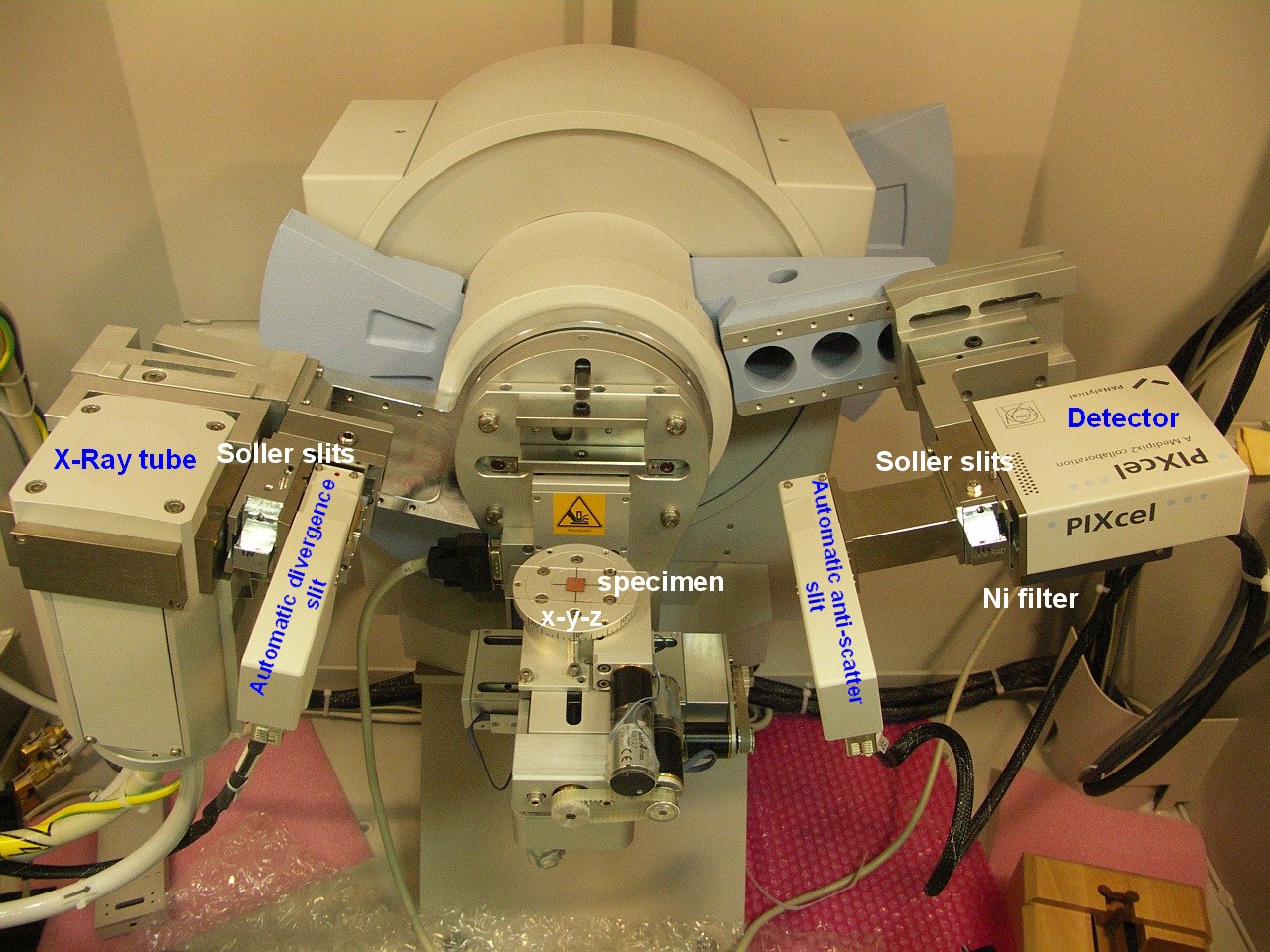

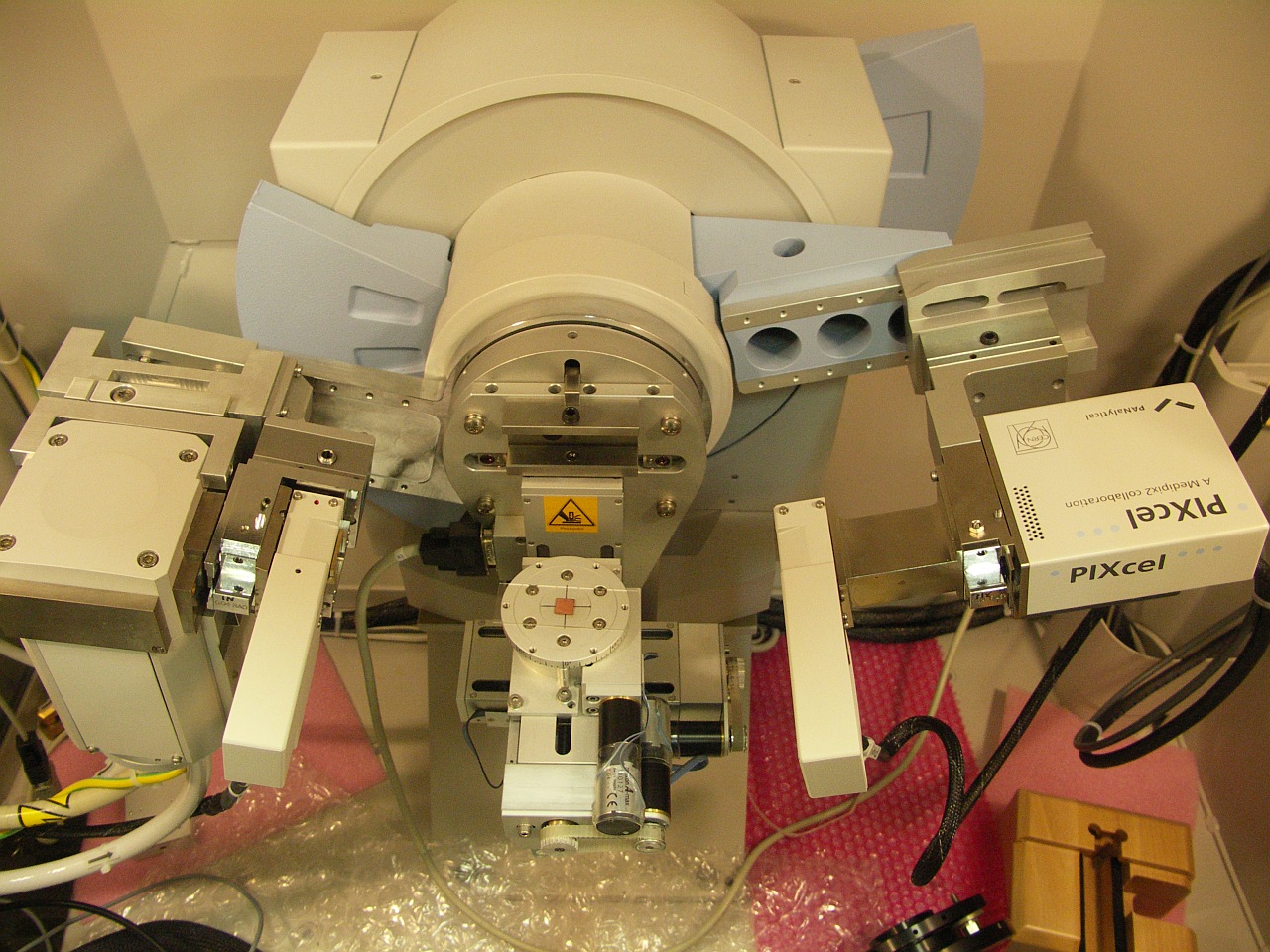

- PIXcel detector
