MHz Microscopy at European XFEL
P. Vagovič1, 2, Pablo Villanueva Perez3,
T. Sato2, V. Bellucci2, S. Birsteinova2, H. J.
Kirkwood2, G. Giovanetti2, M. Stupar2, N.
Jardon2, J. Szuba2, K. Wrona2, R. Bean2,
R. Letrun2, J. Koliyadu2, R. Graceffa2,
Antonio Bonucci2, L. Adriano2, M.C. Zdora4, J.
Uličný5, P. F. Garcia-Moreno6,7, S. Hall3, C.D. Ohl8,
W. Yashiro9, A. Korsunsky10, H. Soyama11,, A.
P. Mancuso2,12, A. Meents1 , H. Chapman1
1Center for
Free-Electron Laser Science (CFEL), DESY, Hamburg, Germany, 2European
XFEL GmbH, Hamburg, Germany,
3 Lund University, Sweden, 4Paul Scherrer Institute, 5232
Villigen PSI, Switzerland, 5 Faculty of Science, Department of
Biophysics, P. J. Šafárik University,Slovakia, 6Department of
Chemistry and Physics, Institute
of Applied Materials, Helmholtz Centre Berlin, Hahn-Meitner-Platz 1, Berlin
14109, Germany, 7Institute
of Materials Science and Technologies, Technical University Berlin,
Hardenbergstr. 60, Berlin 10623, Germany, 8Faculty of Natural
Sciences, Institute for Physics, Otto-von-Guericke-University Magdeburg,
Universitätsplatz 2, 39016 Magdeburg, Germany,9International Center for Synchrotron Radiation Innovation Smart (SRIS),
Tohoku University, 10Department of
Engineering Science, University of Oxford, Parks Road, Oxford, Oxfordshire, OX1
3PJ, United Kingdom, 11Finemechanics
Department, Tohoku University, 6-6-01 Aoba, Aramaki, Aoba-ku, Sendai 980-8579,
Japan, 12La Trobe
Institute for Molecular Science, La Trobe University, Melbourne, Victoria 3086,
Australia,
First MHz rate fourth generation hard X-ray
XFEL source European XFEL [1] provide unique opportunity for characterisation
of stochastic dynamics occurring in various systems either naturally or
response is stimulated by an external force. High repetition rate of pulses (up
to 4.5 MHz) together with high flux per pulse allow to record projected X-ray radiograms
of dynamic samples and image more then million frames per second with high
spatio-temporal resolution. Each such frame is illuminated using ultrashort
exposure (fs scale) given by the X-ray pulse duration providing “frozen in
time” snapshots of stochastic phenomena. This enable to film fast stochastic
processes individual realisations in slow smooth motion. Experimental
configuration of projection X-ray radiography is shown on Fig.1. Moreover, EuXFEL
SASE1 undulator generate X-ray pulses with three orders higher number of
photons per pulse (1012 photons) as compared to synchrotrons
reaching hard X-ray range up to 24keV with ~20eV bandwidth. This unique performance
allows for implementation of X-ray beam splitting schemes of multiprotection
microscopy to obtain 3D snapshots per single pulse of dynamic objects sampled
at MHz rate. We will present applications of recently developed MHz XFEL projection
X-ray microscopy [2] applied for study of industrially relevant fluidic system
behaving stochastically and we will present experimental results from recent characterisation
of multi-projection MHz X-ray which is being developed under EIC-Pathfinder
MHz-Tomoscopy project at SPB/SFX instrument [3].

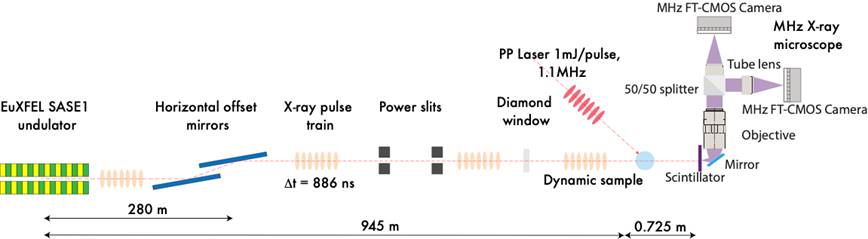

Fig. 1 Experimental arrangement of MHz X-ray projection
Microscopy at European XFEL SPB/SFX instrument.
[1] W. Decking et al., Nature Photonics 14,
391–397 (2020),
[2] P. Vagovič, et al., Optica 6, 1106-1109 (2019),
[3] A. P. Mancuso et al., J. Synchrotron Rad., 26, 660–676 (2019),
