Structure Analysis of Drug Delivery Systems with SAXS in the Laboratory
Andreas Keilbach and Martin Medebach
Anton Paar GmbH, Anton Paar Straße 20, 8054 Graz, Austria

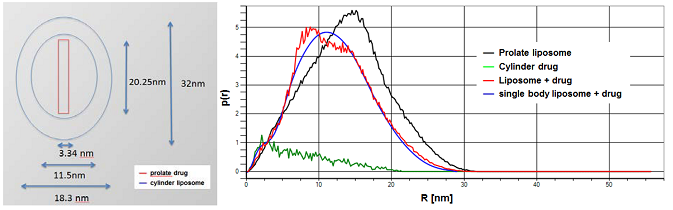

Small-Angle X-ray Scattering (SAXS) draws increasing attention in the field of pharmaceutical engineering. SAXS is a versatile technique used for shape and size characterization of nanostructured materials between 1 nm and 200 nm. Biological samples, like proteins or viruses are already well known to be investigated with SAXS. Furthermore drug delivery systems like drug loaded vesicles (see example in figure 1), where size and shape parameters of the vesicle and the drug are found or granulate powders, where the internal surface obtained by SAXS correlates with the tablet hardness, are interesting examples of applications in pharmaceutical research.
In this contribution we present select applications of biological samples, employing a multifunctional laboratory Small and Wide Angle X-ray Scattering (SWAXS) system, the SAXSpoint. The SAXSpoint system enables SAXS and WAXS studies at ambient and non-ambient conditions, GI-SAXS, in-situ tensile SWAXS experiments and satisfies the advanced user with a wide range of dedicated sample stages, full experimental flexibility and highest resolution. The system provides simple operation, short measurement times and excellent angular resolution, enabled by a smart beam formation concept which includes a brilliant X-ray source, advanced X-ray optics and optimized scatterless collimation while maintaining a laboratory-friendly compact size and small footprint.
Different scattering studies on biological and pharmaceutically relevant samples were performed on the presented SAXSpoint system. Some of the samples required high resolution, i.e. a very low minimum scattering angle in order to resolve large structural dimensions. The unique sample-positioning mechanism enabled WAXS measurements to determine crystallinity without re-aligning any part of the SWAXS system. The presented studies clearly show that high-resolution and high-quality SWAXS data can be obtained with a laboratory SWAXS system.
