Powder3D, An easy to use program for data reduction and graphical presentation of large numbers of powder diffraction patterns
B.
Hinrichsen, R. Dinnebier, M. Jansen
Max-Planck-Institute
for Solid State Research, Heisenbergstraße 1, Stuttgart, Germany
One of the
major advantages of powder diffraction compared to other analysing techniques
is to (indirectly) measure changes of the entire crystal structure as a
function of time, pressure, temperature, chemical composition, magnetic field
etc.
Once online
image plate readers and high resolution CCD cameras became available, they
shall force changes in methods of data analysis and presentation. Typical
readout times are now on the order of seconds. Soon, milliseconds will become
standard, producing huge amounts of data which need to be processed in a
reasonable amount of time.
The new software solution presented here aims to provide a tool for just
this purpose. At the
present time the implemented functionalities include data reduction for
Rietveld refinement and powerful graphical representations of 2D and 3D powder

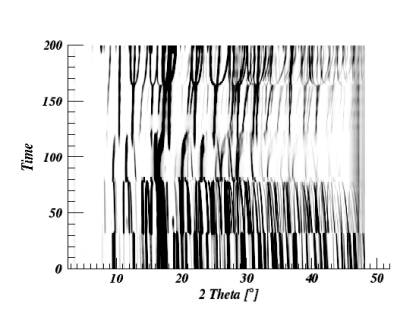

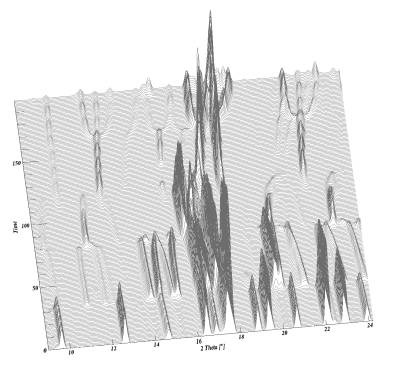

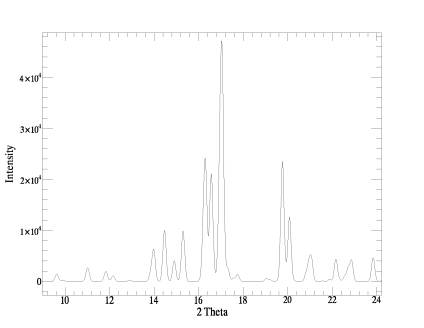

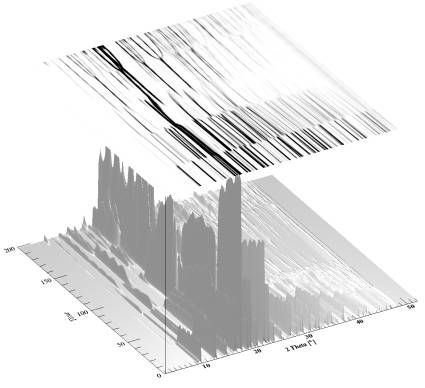

diffraction data in presentation quality (see figures 1 to 4, showing the phase
transformations and decomposition of Rb2C2O4 which is subject of another abstract). The
software design and functionality has been optimised to allow a substantial
amount of automation if desired by the user.
|
|
Fig. 1 |
Fig. 2 |
|
|
Fig. 3 |
Fig. 4 |
