Complex Intermetallic Compounds in the Mg-Ir System Solved by Powder Diffraction



Radovan Černýa,, Guillaume  Renaudina , Yaroslav Tokaychuka and Vincent  Favre-Nicolinb



aUniversity of Geneva, 24 quai Ernest-Ansermet, CH-1211 Geneva 4, Switzerland

bCEA/Grenoble, 17, rue des Martyrs, F-38054 Grenoble Cedex 9, France



In the Mg–Ir phase diagram only the composition interval 0–25 at. % Ir was investigated [1]. Nothing is known about compounds with higher iridium content. Recently, new compound with the composition of Mg5Ir2 (28.6 at. % Ir) was reported [2], and found to crystallize with the hexagonal Al5Co2 type structure. Here we report on two new topologically closed-packed intermetallic compounds rich in iridium with new structure types. Their crystal structures were fully characterized by high resolution synchrotron powder diffraction (SNBL, l ~ 0.5 Å, sample in a 0.2 mm glass capillary), global optimization of a structural model in direct space using the simulated annealing (in parallel tempering mode) using the program FOX [3] and refined by FullProf.2k.

MgIr:

S.g. Cmca, 25 independent atoms, a = 18.46948(6), b = 16.17450(5), c = 16.82131(5) Å, 76 parameters, Rwp = 0.094, c2 = 3.02, RB = 0.056, measured composition (EDAX) Mg52(2)Ir48(2). The structural model was independently confirmed by the single crystal X-ray diffraction [4]. The Ir-Ir interatomic distances in MgIr are in the range of 2.424(4) - 2.667(2), and are the shortest ever observed in an Ir-containing compound.

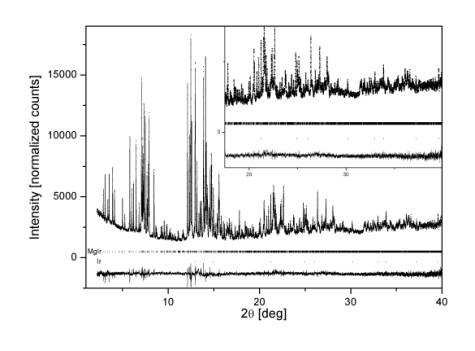

Figure 1: Rietveld plot of MgIr.

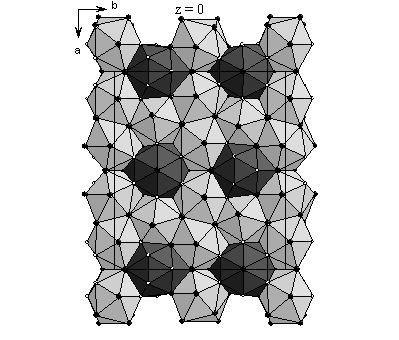

Figure 2: Structural slab of MgIr. Ligand atoms: Ir as small white and Mg as large black spheres

         .



Mg2Ir3:

S.g. C2/m, 11 independent atoms, a = 18.5700(2), b = 5.18716(3), c = 8.49240(6) Å, β=97.2211(5)°, 27 parameters, Rwp = 0.141, c2 = 1.44, RB = 0.053. The structure is derived from that of the hexagonal Laves phase MgIr2, which was also observed by us, by stacking of deformed MgIr2 blocks that are two IrMg12 icosahedra thick.



[1]   Binary Alloy Phase Diagrams. (1996). Second Edition, version 1.0, ASM International.

[2]   Černý, R., Joubert, J.-M., Kohlmann, H. & Yvon, K. (2002).  J. Alloys Comp.  340, 180-188.

[3]   Favre-Nicolin, V. and Černý, R.,  J. Appl. Cryst. 35 (2002) 734-743 see also: http://objcryst.sourceforge.net

[4]   Černý, R., Renaudin, G., Favre-Nicolin, V., Hlukhyy, V. and Pöttgen, R. Acta Cryst. B, in press.
